Features

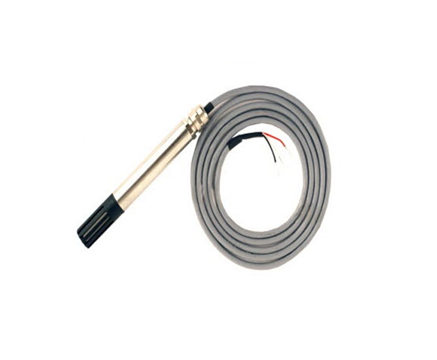

■ Temperature and Humidity sensor with Voltage output
■ High accurate temperature and humidity measurement
■ Thermoplastic cover with holes for humidity sensing
■ Small size & Fast response time
■ Employing RJ-12 output connector :
Red : Vin, Green : Humidity, White : Temperature, Black : GND
■ PIPE SIZE: 10*124(mm)
■ 4WIRE
■ OUT PUT: 0~4.5V, 4~20mA
■ SUPPLY VOLT: 5V DC
■ HUMIDITY RANGE:
■ 0~100%RH
■ TEMP RANGE: -40~120℃
■ RESPONSE TIME: 10초
