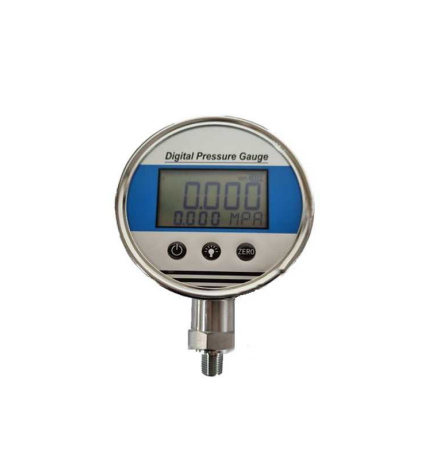

디지털 압력계
페이지 정보
Model : MDPG-100 (OEM) 조회97회첨부파일
-
디지탈압력계사용설명서.pdf
(65.1K)
4회 다운로드
DATE : 2025-01-14 23:56:28
관련링크
본문
Features
◆ Size 100mm,stainless steel case.
◆ Large-screen LCD display, high resolution,back light,easy to read.
◆ Automatically record the maximum pressure values during the measurement.
◆ Pressure on the percentage of dynamic display, (the progress bar display).
◆10 engineering units:Mpa,Pa, Psi, bar, kPa,Tor,Atm, Kgf(kgf/cm2) ,MMH(mmH2O), MH2(mH2O).
◆ 0 ~ 15min auto-off feature.
◆ Micro-power consumption, over 2 years in power-saving mode, continuous work 2,000 hours.
◆ Parameter correction, correct zero and error in field application.
◆ Pressure range already setted before use.
◆ Sampling rate: 4 times / sec.
◆ Applicable to gases and liquids compatible with stainless steel.
Technical Parameters
Pressure range |
0.1-0.4Mpa |
Accuracy |
0.20% |
Overload capacity |
200% |
Pressure type |
Gauge pressure |
Stability |
≤0.1% /year |
Battery voltage |
9VDC |
Display |
LCD |
Display range |
-19999~99999 |
Ambient temperature |
-10℃~60℃ |
Relative humidity |
≤80% |
Mounting thread |
PT1/4” |
Interface Material |
Stainless Steel |
Auto-shut off time |
15minutes |
Back light time |
5minutes |
