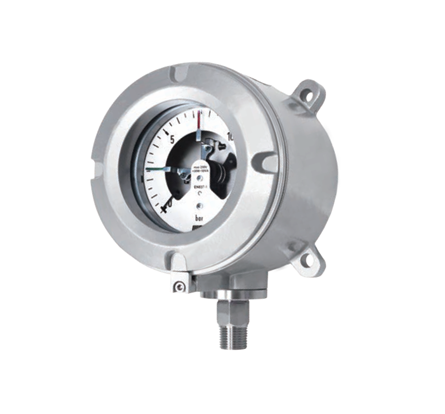

방폭 스위치(Ex d IIC)
페이지 정보
Model : P981 조회648회첨부파일
-
P980.pdf
(278.1K)
34회 다운로드
DATE : 2019-12-23 17:24:31
관련링크
본문
Nominal diameter
100 mm
Repeatability
±1.0 % of adjustable range (Micro contact type)
Adjustable range (MPa, kPa, bar)
-0.1 ~ 0 to 0 ~ 2 MPa
0 ~ 0.1 to 0 ~ 35 MPa
Working temperature
Ambient : -20 ~ 65 °C
Fluid : Max. 100 °C
Temperature effect
Accuracy at temperature above and below the reference
temperature (20 °C) will be effected by approximately
±0.4 % per 10 °C of full scale
Accuracy
Indicator : ±1.0 % of full scale
Alarm setting : ±3.0 % of full scale
