Thermal Gas Mass Flowmeter
페이지 정보

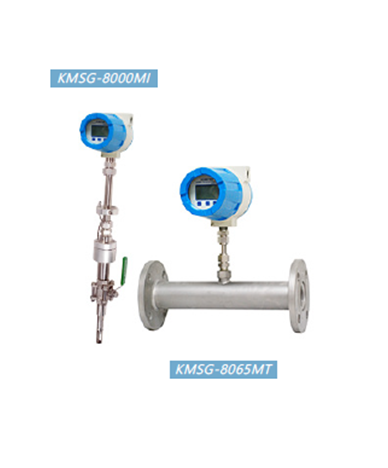

Model : KMSG-8000 Series 조회642회첨부파일
-
KMSG-8000.pdf
(790.8K)
42회 다운로드
DATE : 2019-05-28 14:12:38
관련링크
본문
STANDARD SPECIFICATION
▶ Connection Insertion Type, KS/JIS/ASME/DIN Std. Flange
▶ Size Inline type : 10A ~ 100A
nsertion type : 10A ~ 4000A
▶ Measured fluid Various gases
▶ Measured Range 0.1~100 Nm/s
▶ WorkingTemperature
-40℃ ~ 220℃
(Ambient Temp. : -20℃ ~ 45℃)
▶ Working Pressure Insertion type : ≤1.6 MPa
In-line type : ≤1.6 MPa
▶Display: 4 Lines LCD
Mass flow, Volume flow in standard
condition, Totalizer, Velocity, time.
▶ Power supply 24 VDC or 220VAC
▶ Output DC 4-20 mA, Pulse, RS485, and HART, Contact (High, Low)
▶ Accuracy ±0.5 % (F.S)
▶ Ex d IIC T5 (방폭구조)
IP 67 (방수/방진구조)
