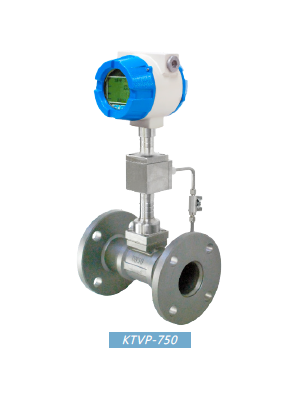

Vortex Mass Flowmeter
페이지 정보
Model : KTVP-750 Series 조회564회첨부파일
-
KTVP-Series.pdf
(1.1M)
34회 다운로드
DATE : 2019-05-28 14:06:14
관련링크
본문
STANDARD SPECIFICATION
▶ Connection KS/JIS/ASME/DIN Std. Flange
▶ Size 15A ~ 300A
▶ Measureed fluid Liquid, Gas, S team
▶ Fluid Temp -40℃ ~ 250℃ (Option. 350℃)
▶ Ambient Temp -25℃ ~ 60℃
▶ Max. Pressure 20 kgf/cm2.G (Op. 40 kgf/cm2.G)
▶ Display Flow rate, Totalizer, Temp', Press'
▶ Power supply DC 24 V (2-Wire)
▶ Output DC 4-20 mA, Pulse (Op. RS-485)
▶ Accuracy ±1.0 % (Option ±0.5 %)
▶ Ex d IIC T5 (방폭구조)
IP 67 (방수/방진구조)
