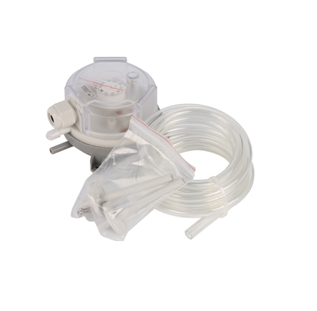

차압스위치
Max. Working Pressure: 10KPa
Type: Gas Sensor
Output: Analog Sensor
Mounted Screew Diameter:4mm
Package Size:110*108*110mm
Weight:264g
Protecting level: IP54
Colour:As Picture Shown
Product Material:
--Switch Material: PA6.6
--Shell Material: Plastic
--Diaphragm Material: Silicone
Temperature Range: Medium and ambient temperatures from -20 ~ 85 °C
Media: Air, non-flammable and non-corrosive gases
