차압트랜스미터
페이지 정보
Model : PATD 조회1,268회첨부파일
-
patd.pdf
(875.7K)
59회 다운로드
DATE : 2019-05-24 15:31:48
관련링크
본문

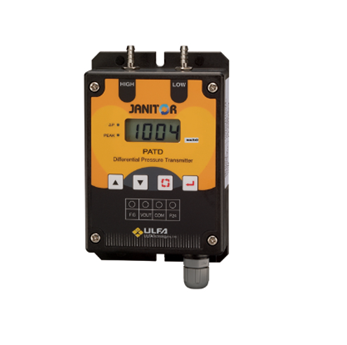

모델명: PATD
SPECIFICATIONS GENERAL
Maximum Pressure: Rated Range x 3 Media
Compatibility: 공기 및 비부식성기체
Pressure Range: Model별 Range표 참조
ELECTRICAL Power Supply: DC24V 2WIRE LOOP
Connections: 2 screw terminal block
Display: 4 Digit LCD
Warm up Time: 15 minutes
TRANSMITTER Connections: 2 Screw terminal block
Output Signal: 4~20mADC(limited at 30mADC)
Loop Resistance: 0 ~ 1100Ω Zero & Span
Adj: One touch Adjustable on Panel
Accuracy: ±0.25 % FSO(Includes Linearity, Hysteresis & Repeatability)
Operating Temperature: 0 to 70 ℃ MECHANICAL
Pressure Connections: 3/16" Nipple
Materials: ABS mold resin
