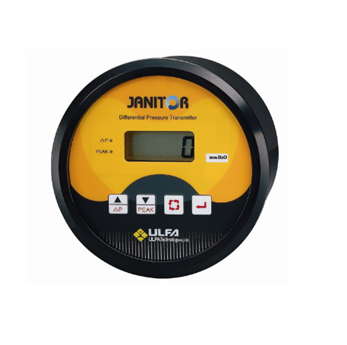

모델명: PDT

Zero점의 조정, Range의 변경은 전면의 key를 통하여 간단히 조작.​

SPECIFICATIONS

GENERAL

Maximum Pressure: Rated Range x 3

Media Compatibility: 공기 및 비부식성기체

Pressure Range: Model별 Range표 참조


ELECTRICAL

Power Supply: DC24V(100~220VAC 50~60Hz)

Connections: 2 screw terminal block

Display: 4 Digit LCD

Warm up Time: 15 minutes

TRANSMITTER

Connections: 2 Screw terminal block

Output Signal: 4~20mADC(limited at 30mADC)

Loop Resistance: 0 ~ 1100Ω

Zero & Span Adj: One touch Adjustable on Panel

Accuracy: ±0.25 % FSO(Includes Linearity, Hysteresis & Repeatability)

Operating Temperature: 0 to 70 ℃

MECHANICAL

Pressure Connections: 1/8" PT female

Materials: ABS mold resin

STANDARD ACCESSARIES

Two(2) 1/8" PT plugs for duplicate/ Snap ring, Mounting ring, four(4) mounting screws
